Description
Soluna lithium Battery 100A
The Soluna lithium Battery 100A is designed for dependable solar power conversion and energy storage. It features robust protection mechanisms, efficient MPPT tracking, and compact design for easy installation. Suitable for a variety of residential and small commercial systems, this unit balances performance and reliability.

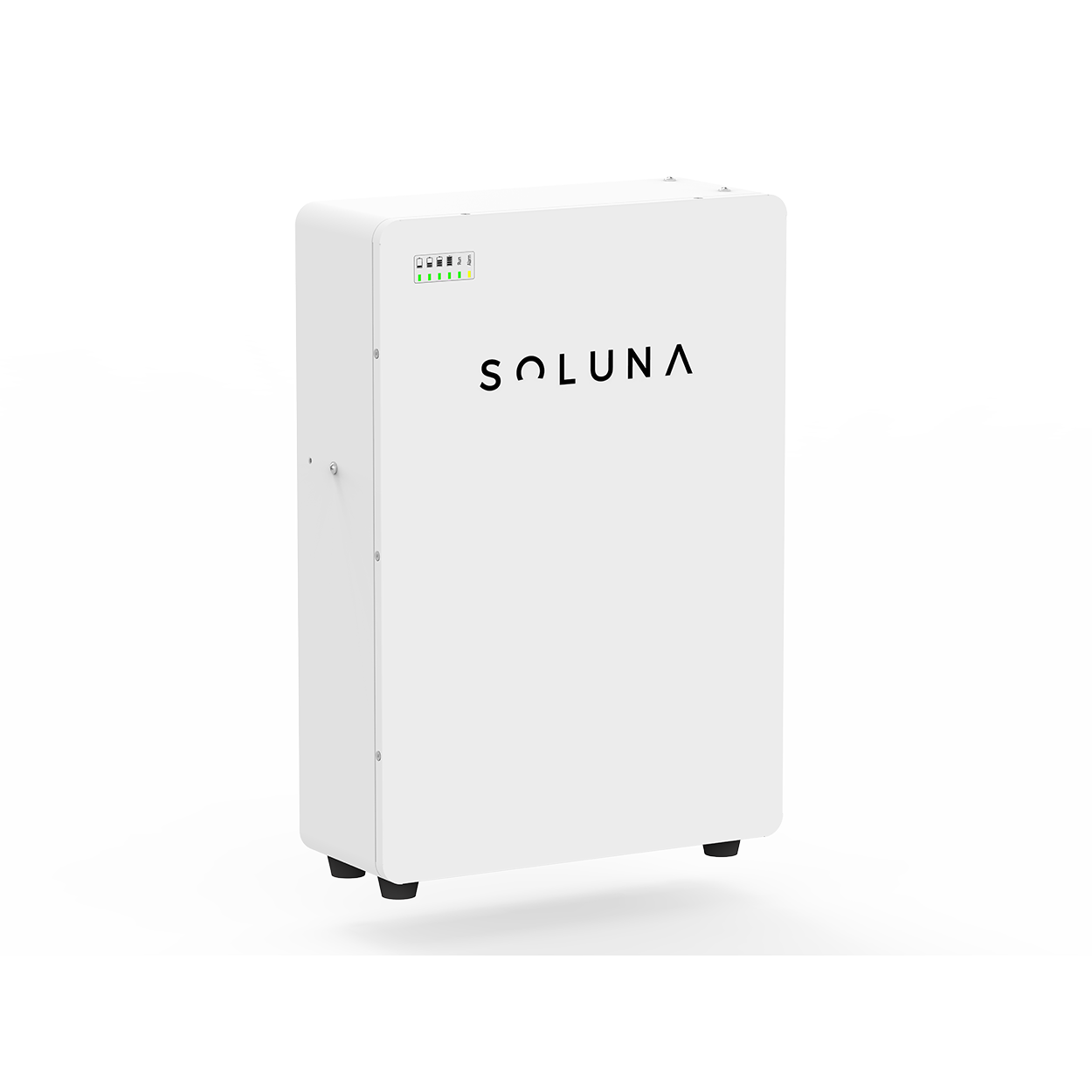

Soluna Lyra 5k Battery – Smart, Safe & Efficient Storage
The Soluna Lyra 5k Battery is a high-quality LFP battery engineered for stable and long-lasting energy storage. With a 51.2V low-voltage architecture, it is fully compatible with most hybrid and off-grid inverters commonly used in residential solar systems.
Featuring a built-in BMS, MOSFET DC fuse, and advanced cell monitoring, the Lyra 5k ensures safe operation and optimized battery performance. Its compact and lightweight design allows both wall-mounted and floor-standing installation, making it ideal for homes with limited space.
The battery includes built-in WiFi and CAN / RS485 communication, enabling real-time monitoring through the Soluna eCloud platform and mobile apps. With parallel expansion support, the system can be scaled to meet increasing household energy demands.
Why Choose Soluna Lyra 5k Battery?
✔ 5.12 kWh LiFePO₄ battery with high safety & stability✔ 6000-cycle lifespan for long-term daily use✔ >95% round-trip efficiency for maximum energy utilization✔ Built-in WiFi & smart monitoring via mobile app✔ Flexible wall-mount or floor-mount installation
The SOLUNA BES 5K Low Voltage Lithium Battery (5.12kWh, 51.2V) is a powerful and reliable energy storage solution for homes, businesses, and solar systems. Built with Lithium Iron Phosphate (LFP) technology, it delivers more than 6000 cycles with over 95% round-trip efficiency, ensuring maximum energy savings and long-term reliability.
Designed with IP65 ingress protection, this battery is suitable for both indoor and outdoor installation, with wall-mounted and floor-standing options. Its expandable capacity up to 80kWh, built-in Wi-Fi, and communication cables make it future-ready and compatible with most inverters.
The SOLUNA BES 5K is backed by a IP65, making it the ideal choice for smart, scalable, and efficient solar energy storage.
Key Features
| Feature | Specification |
|---|---|
| Model | SOLUNA BES 5K Low Voltage Battery |
| Battery Type | Lithium Iron Phosphate (LFP) |
| Nominal Capacity | 5.12 kWh |
| Nominal Voltage | 51.2V |
| Usable Voltage Range | 48V – 57.6V |
| Max Charge Current | 75A |
| Max Discharge Current | 100A |
| Depth of Discharge (DoD) | 90% |
| Internal Resistance | ≤ 60mΩ |
| Cycle Life | 6000+ cycles |
| Round-Trip Efficiency | >95% |
| BMS | Integrated with MOSFET Fuse |
| Monitoring Platform | Soluna eCloud (Android & iOS Apps) |
| Communication | CAN, Wi-Fi, RS485 |
| Power Consumption | <3W (working), <100mW (sleep) |
| Installation Options | Wall-mounted / Floor-standing |
| Expandability | 1–16 units in parallel (up to 80kWh) |
| Dimensions (HxWxD) | 580 × 420 × 155 mm |
| Net Weight | 48 kg |
| Cooling Strategy | Natural Convection |
| Operating Temperature | -10°C to 50°C |
| Recommended Temperature | 15°C – 30°C |
| Storage Temperature | 15°C – 30°C |
| Humidity Conditions | 5% – 95% (non-condensing) |
| Altitude Limit | ≤ 2000m |
| Ingress Protection | IP65 (water & dust proof) |
| Certifications | UN38.3, Class 9 Safety Compliant |
| Hazardous Material Class | Class 9 |
| System Compatibility | Works with most inverters |
- High efficiency and stable output
- Advanced safety and protection features
- Support for battery integration and multiple operating modes (where applicable)
- IP-rated enclosure for outdoor installations (model dependent)
Why choose this product?
Engineered to meet rigorous quality standards, the product offers strong after-sales support and compatibility with common solar components. Please consult the manufacturer datasheet for exact electrical specifications and installation requirements.
