Kstar BluePulse Series 80-125 kW / 220-260 kWh

PKR 15,000,000.00

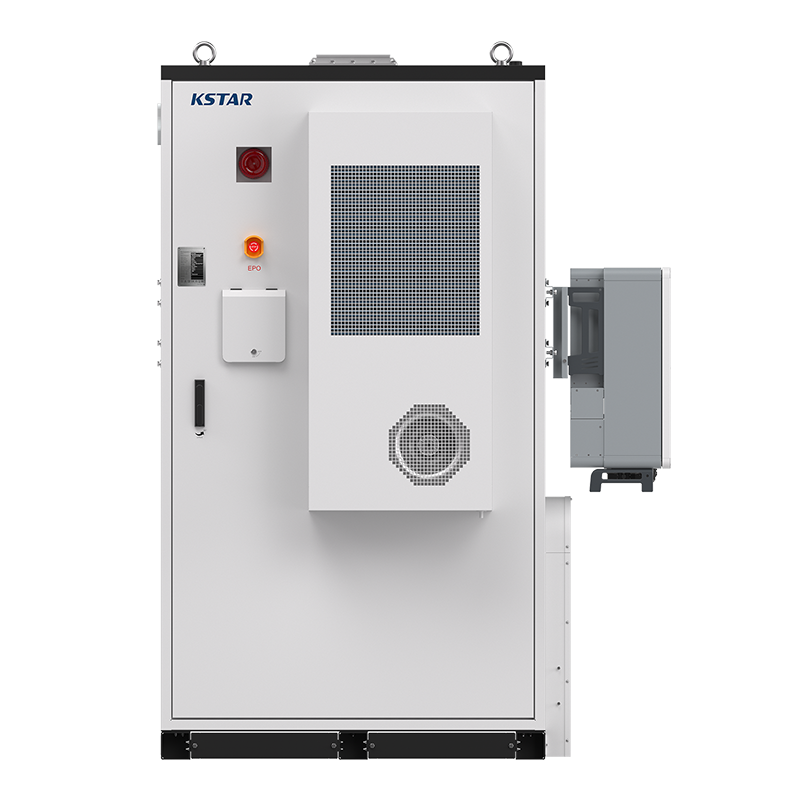

BluePulse Series 80-125 kW / 220-260 kWh

BluePulse Series 80-125 kW / 220-260 kWh is an outdoor hybrid energy storage system featuring KAC80-125DP2 inverters and BC220-260DE2A LFP battery modules. It delivers 80-125 kW AC output with 221-261 kWh usable capacity, supports PV input up to 250 kWp, and achieves 98% efficiency. With IP54 battery and IP66 inverter protection, C4 anti-corrosion, -30°C to +50°C operation, 10ms on/off-grid switching, self-developed BMS/EMS, and 5-year product / 10-year performance warranty, it is certified to IEC 62619, IEC 62477, and UN38.3 for reliable commercial and industrial energy management.

Categories: , , , Tags: , , , , , , ,

Description

Versatile Application

Ideal for factories, hotels, and farms with DC / AC-coupled solar-storage
No external switching device is required, on/off-grid switching time about 10ms, support direct output backup load

Safe & Reliable

314ah large capacity cell, higher energy density
Carbon monoxide detection, Sound and light alarm, Exhaust fan, Explosion vent window, Inlet valve, Fire water injection port

Easy Operation

Compact design saves space
Cloud control with 24 / 7 monitoring

Smart Energy

Supports self-consumption, peak shifting, time-of-use, and battery backup
Integrated self-developed BMS / EMS for flexibility

High Performance

Small size, small footprint
Long-lasting battery cycle life
