AIDUO Solar 350 Watt Mono crystalline

21,000.00

Features

  • PID and snail trails free
    Excellent performance under low irradiance
    Additional environmental tested for salt mist ammonia rain, Ensure performance in harsh environment
    Power tolerance 0-+5w Guaranteed power output
    Additional yield and easy maintenance with high transparent self-cleaning glass
    2 times EL testing during manufacturing, defect-free modules
  • Download Datasheet

Description

Product Characteristics

Model No.
AD330-72S AD335-72S AD340-72S AD345-72S AD350-72S
Warranty
Product Warranty 12 Years
Electrical Data at STC
Maximum Power (Pmax)
330 Wp 335 Wp 340 Wp 345 Wp 350 Wp
Voltage at Maximum Power (Vmpp)
38.3 V 38.6 V 38.9 V 39.2 V 39.5 V
Current at Maximum Power (Impp)
8.62 A 8.68 A 8.74 A 8.8 A 8.86 A
Open Circuit Voltage (Voc)
46.7 V 47 V 47.3 V 47.6 V 47.9 V
Short Circuit Current (Isc)
9.15 A 9.22 A 9.28 A 9.35 A 9.4 A
Panel Efficiency
17 % 17.2 % 17.5 % 17.7 % 18 %
Power Tolerance (Positive)
+ 1.5 % + 1.5 % + 1.5 % + 1.5 % + 1.5 %
Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax)
244 Wp 248 Wp 252 Wp 256 Wp 260 Wp
Voltage at Maximum Power (Vmpp)
33.8 V 33.9 V 34 V 34.1 V 34.2 V
Current at Maximum Power (Impp)
7.22 A 7.32 A 7.42 A 7.51 A 7.61 A
Open Circuit Voltage (Voc)
41.8 V 41.9 V 42 V 42.1 V 42.2 V
Short Circuit Current (Isc)
7.64 A 7.74 A 7.84 A 7.94 A 8.04 A
Temperature
45±2 °C 45±2 °C 45±2 °C 45±2 °C 45±2 °C
Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range -40~85 °C
Temperature Coefficient of Pmax -0.42 %/°C
Temperature Coefficient of Voc -0.31 %/°C
Temperature Coefficient of Isc 0.039 %/°C
Maximum Ratings
Maximum System Voltage 1000 V
Series Fuse Rating 15 A
Material Data
Panel Dimension (H/W/D) 1956x992x40 mm
Weight 22.5 kg
Cell Type Monocrystalline
Cell Size 156.75×156.75 mm
Cell Number 72
Frame Type Anodized Aluminium Alloy
Junction Box Protection Class IP 67
Connector Type MC4
Cable Crossection 4 mm2
Cable Length 1100 mm

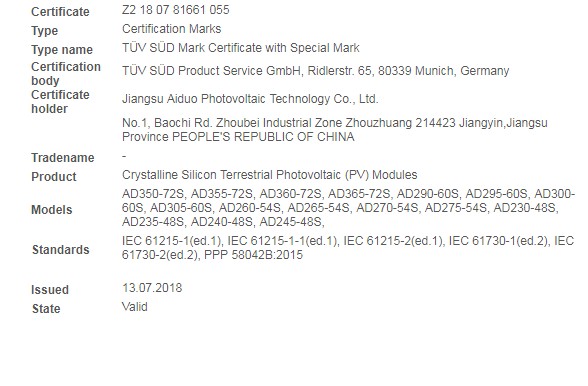

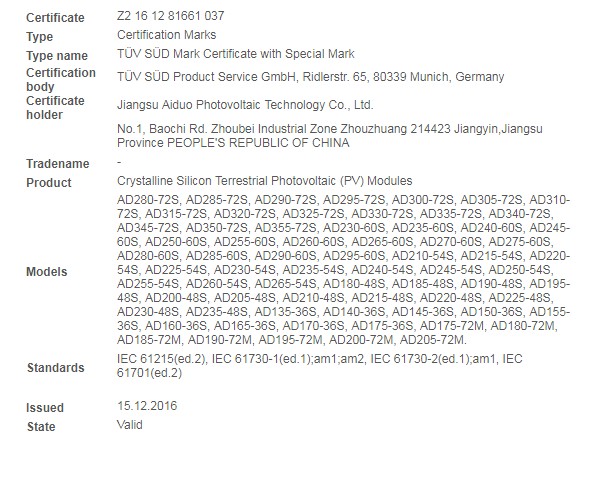

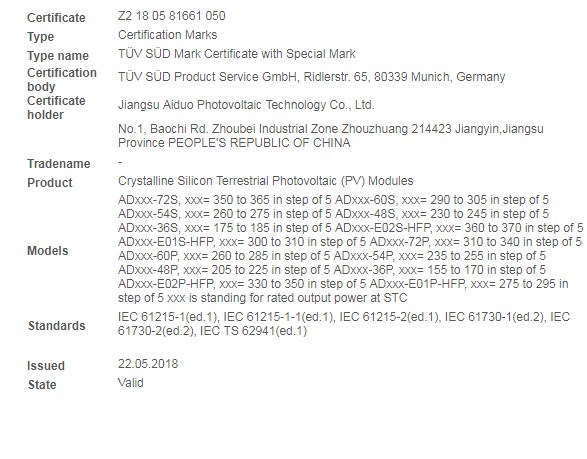

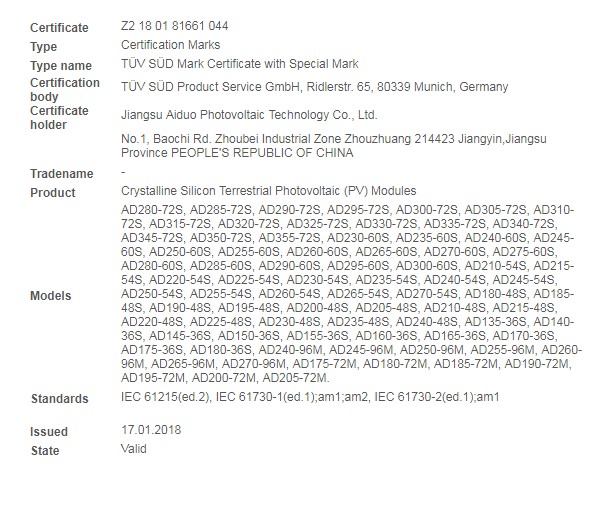

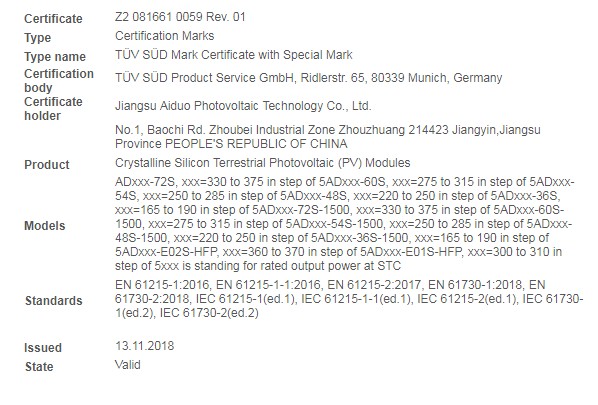

Certifications
